1000 WOG 雙向球閥

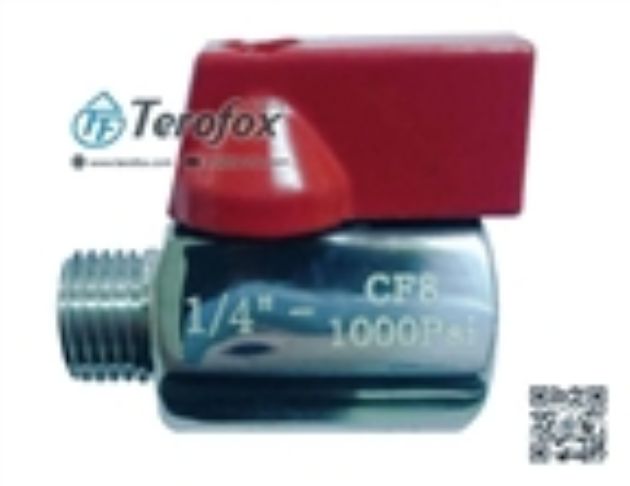

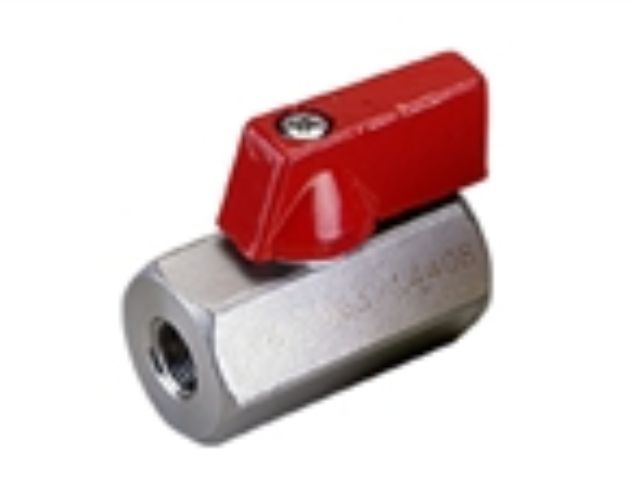

MN-110 一體式迷你閥門。
商品編號：MN-110
商品簡述：
-
MN-110
SIZE：1/8" ~ 3/4" ( DN6 ~ DN20 )
1-pc design mini valve.
檔案下載
Product Features
• Lost-wax injection casting.
• Cost-efficient type.
Applicable Standards
Body Material CF8 / CF8M
1.4308 / 1.4408
Seat RTFE
Pressure 1000psi ( PN63 bar )
Connections BSPT ( BS 21 )
BSP ( BS 2779 )
ISO 228-1
DIN 2999
ISO7-1Rp
B1.20.1 NPT
Temperature -20 to 180℃ ( -4 to 356℉ )
Specifications Body wall thickness : Manufacture standard.
Face to Face : Manufacture standard.
Valve Test API 598
